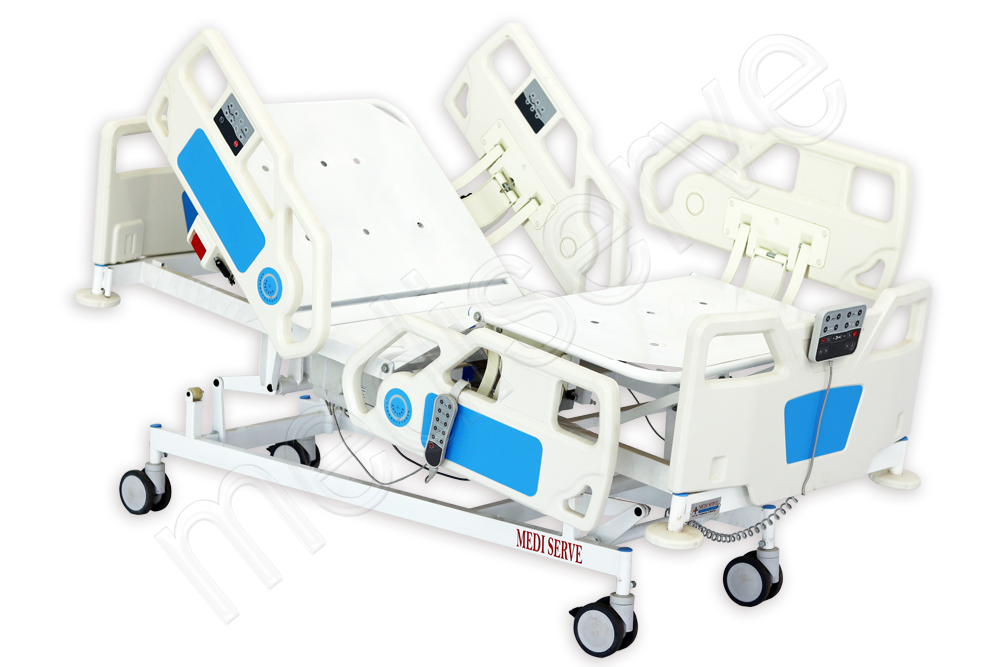

Specifications :
- Overall Dimensions :- 84" X 44" X 22" - 36"
- Mattress Platform :- 78" X 33"
- Patient Load Bearing :- 150 Kg
Features :
- Total 5 control panel system to operate the functions of bed.
- Embedded panel on either side of front railings for caregiver's and patient.
- Angle indicator for back rest, Knee rest, trendelenburg and reverse tredelenburg.
- Motorized back rest, knee rest, height adjustment, trendeleburg and reverse trendelenburg.
- Full length polymer moulded split type safety side rails.
- Polymer moulded head and foot panels, easily removable without using any tools
- Four Corner Safety rubber buffers.
- Easily remoable polypropylene 4 section mattress top.
Materials Used :
- All the Function operated by TI Motion Linear Actuator System
- Frame work made-up of 50 x 25 mm CRCA Rectangular MS Tube of 1.5mm thickness
- Bed Platform made-up of 4 Section Perforated 1.2mm Thickness CRCA Sheet
- Base made-up of 60 x 30 mm Rectangular 1.5mm thickness CRCA Tube
- Links attached made up of 12mm thickness CRCA Patti
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated.
Optional :
- X Ray Compatible Back Rest
- X Ray Compatible Knee Rest
- X Ray Compatible Entire Top

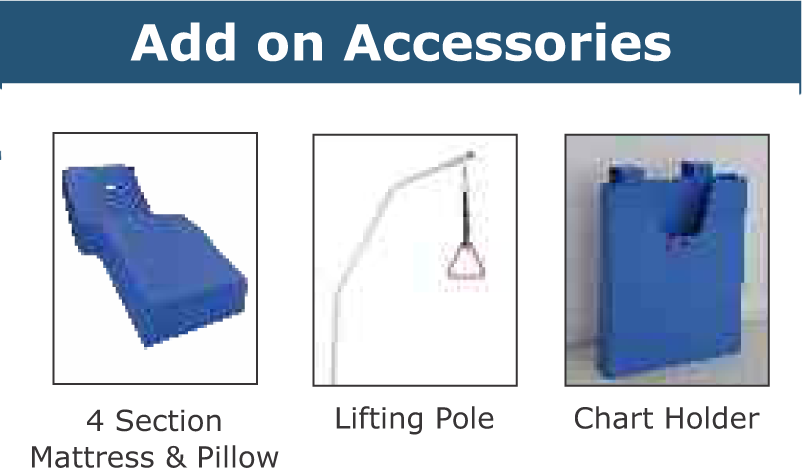

Add on Accessories

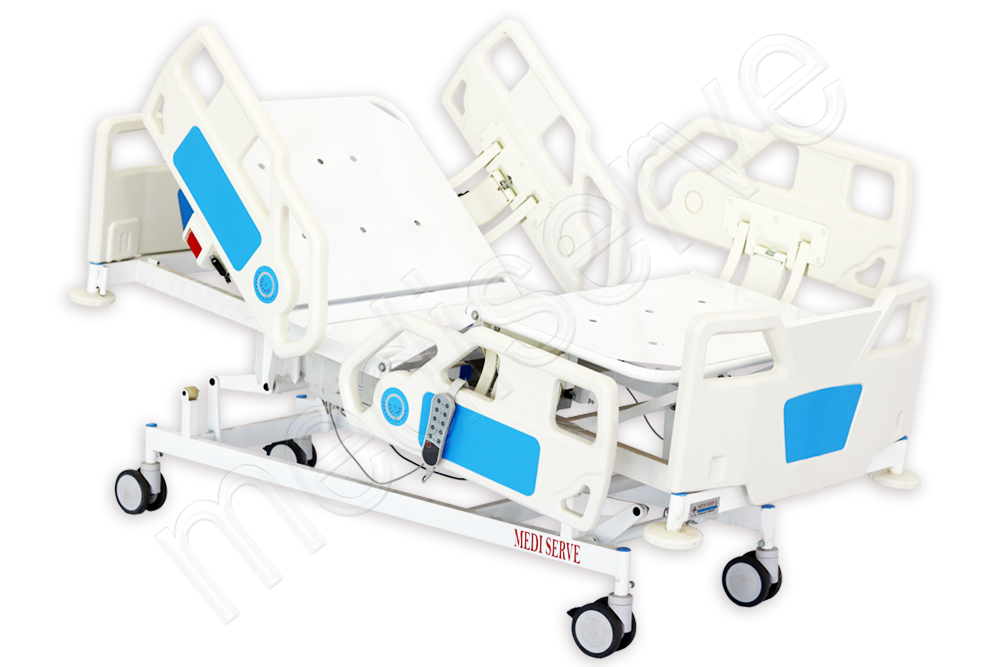

Specifications :
- Overall Dimensions :-
- Functions :- Back Rest, Knee Rest, Trendelenburg, Reverse Trendelenburg & Height
- All the Function operated by TI Motion Linear Actuator System by Remote
- ABS Head & ABS Foot Bows
- 4 Piece ABS Tuck Down Side Railing
- Frame work made-up of 50 x 25 mm CRCA Rectangular MS Tube of 1.2mm thickness
- Bed Platform made-up of 4 Section Perforated 1.2mm Thickness CRCA Sheet
- Base made-up of 60 x 30 mm Rectangular 1.5mm thickness CRCA Tube
- Links attached made up of 12mm thickness CRCA Patti
- 5 Inch Castor , 2 With Brakes & 2 Without Brakes
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated.
Add on Accessories
Specifications :
- Overall Dimension:- 84" L X 44" W X 27" - 33"H
- Functions :- Back Rest, Knee Rest, Trendelenburg, Reverse Trendelenburg & Height.
- All the function operated by CNC made Smooth Crank Screw handle Mechanism,
- ABS Head & ABS Foot Bows
- 4 Piece ABS Tuck Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material,
- 5 Inch Castor , 2 With Brakes & 2 Without Brakes,
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated.
Add on Accessories
Specifications :
- Overall Dimension:- 84" L X 36" W X 27" - 33" H
- Functions :- Back Rest, Knee Rest, Trendelenburg, Reverse Trendelenburg & Height.
- All the function operated by CNC made Smooth Crank Screw handle Mechanism,
- ABS Head & ABS Foot Bows
- 4 Piece ABS Tuck Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material,
- 5 Inch Castor , 2 With Brakes & 2 Without Brakes,
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated.
Optional :
- Drop Down Side Railing (SS)
Add on Accessories
Specifications :
- Overall Dimension:- 84" L X 44" W X 29" H
- Functions :- Back Rest, Knee Rest, Trendelenburg & Reverse Trendelenburg
- All the function operated by CNC made Smooth Crank Screw handle Mechanism
- ABS Head & ABS Foot Bows
- 4 Piece ABS Tuck Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material,
- 5 Inch Castor , 2 With Brakes & 2 Without Brakes,
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated.
Add on Accessories
Specifications :
- Overall Dimension:- 84" L X 36" W X 29" H
- Functions :- Back Rest Knee Rest, Trendelenburg & Reverse Trendelenburg
- All the function operated by CNC made Smooth Crank Screw handle Mechanism,
- ABS Head & ABS Foot Bows
- 2 Piece Alluminium Collapsible Side Railing with Lock,
- Entire Body is made-up of Mild Steel CRCA Material
- 5 Inch Castor , 2 With Brakes & 2 Without Brakes
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated
Optional :
- Drop Down Side Railing (SS)
Add on Accessories
Specifications :
- Overall Dimension:- 84" L X 44" W X 24" H
- Functions :- Back Rest & Knee Rest
- All the function operated by TI Motion Linear Actuator System with Remote
- ABS Head & ABS Foot Bows
- 4 Piece ABS Tuck Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps,
Optional :
- 5 inch Castor, 2 With Brakes & 2 Without Brakes
Specifications :
- Overall Dimension:- 84" L X 44" W X 24" H
- Functions :- Back Rest & Knee Rest
- All the function operated by CNC made Smooth Crank Screw handle Mechanism,
- ABS Head & ABS Foot Bows
- 4 Piece ABS Tuck Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps,
Optional :
- 5 inch Castor, 2 With Brakes & 2 Without Brakes
Specifications :
- Overall Dimension:- 84" L X 36" W X 24" H
- Functions :- Back Rest & Knee Rest
- All the function operated by CNC made Smooth Crank Screw handle Mechanism
- ABS Head & ABS Foot Bows
- 2 Piece Alluminium Collapsible Side Railing with Lock
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps,
Optional :
- 5 inch Castor, 2 With Brakes & 2 Without Brakes
- Drop Down Side Railing (SS)
Specifications :
- Overall Dimension:- 84" L X 36" W X 24" H
- Functions :- Back Rest & Knee Rest
- All the function operated by CNC made Smooth Crank Screw handle Mechanism
- ABS Head & ABS Foot Bows
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps,
Optional :
- SS Head & Foot Bows
- Drop Down Side Railing (SS)
Specifications :
- Overall Dimension:- 84" L X 36" W X 24" H
- Functions :- Back Rest
- All the function operated by CNC made Smooth Crank Screw handle Mechanism
- ABS Head & ABS Foot Bows
- 2 Piece Alluminium Collapsible Side Railing with Lock
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps,
Optional :
- 5 inch Castor, 2 With Brakes & 2 Without Brakes
- Drop Down Side Railing (SS)
Specifications :
- Overall Dimension:- 75" L X 33" W X 24" H
- Functions :- Back Rest
- All the function operated by CNC made Smooth Crank Screw handle Mechanism
- ABS Head & ABS Foot Bows
- 2 Piece Alluminium Collapsible Side Railing with Lock
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps,
Optional :
- SS Head & Foot Bows
- Drop Down Side Railing (SS)
Specifications :
- Overall Dimension:- 75" L X 36" W X 24" H
- ABS Head & ABS Foot Bows
- 2 Piece Alluminium Collapsible Side Railing with Lock
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps,
Optional :
- Drop Down Side Railing (SS)
Specifications :
- Overall Dimension:- 75" L X 36" W X 24" H
- MS Head & MS Foot Bows
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps
Optional :
- SS Head & Foot Bows
- Drop Down Side Railing (SS)

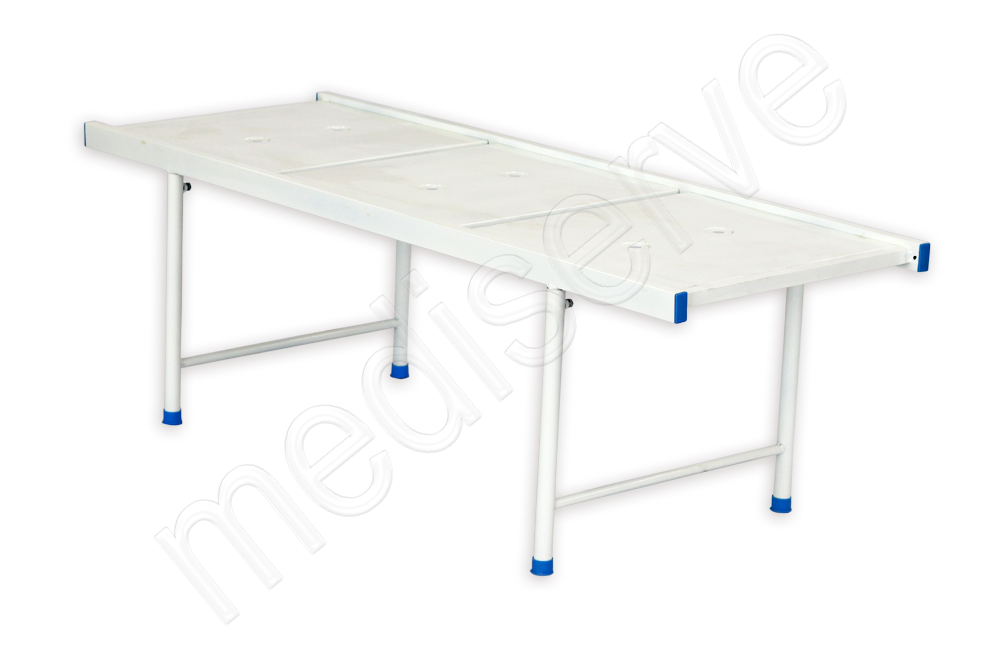

MS 516 - Attended Bed (Square)
Specifications :
- Overall Dimension:- 66" L x 24" W x 24"H
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps
Specifications :
- Overall Dimension:- 66" L x 24" W x 24"H
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps

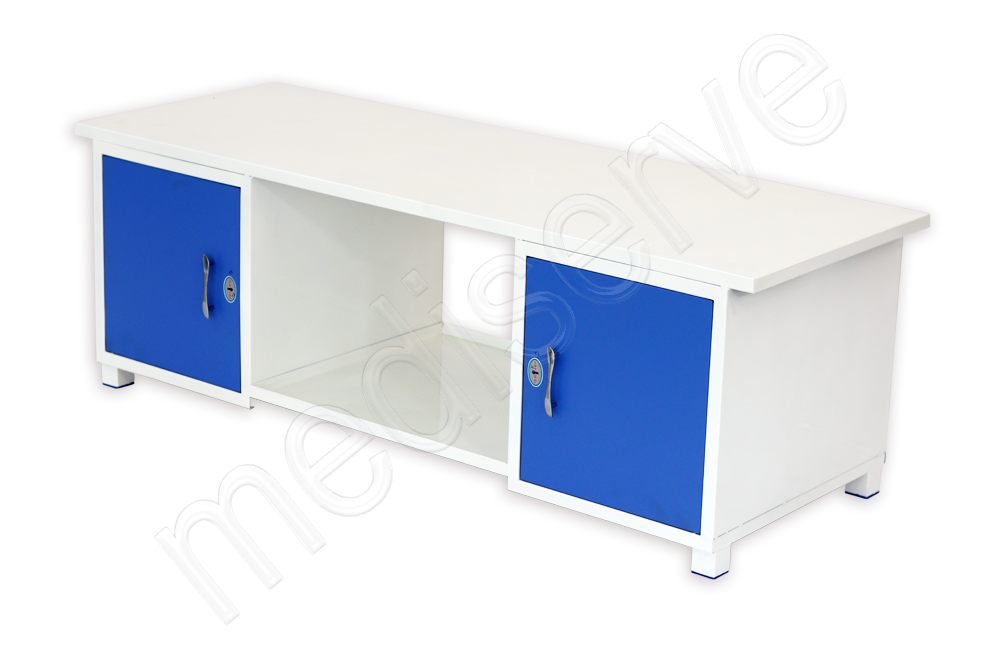

MS 518 - Attended Bed with Storage
Specifications :
- Overall Dimension:- 66" L x 24" W x 24"H
- Storage Space given below the Mattress Platform with Sliding Doors / Regular Doors
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps

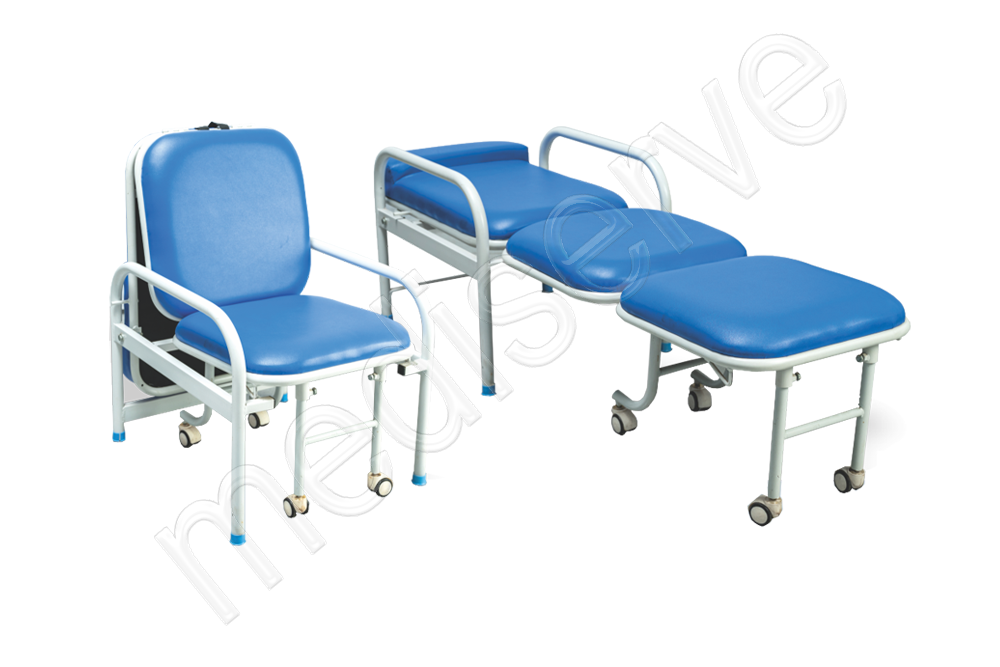

MS 519 - Attended Bed Cum Chair
Specifications :
- Overall Dimension:- 66" L x 24" W x 24"H
- Pull- Out Design for Easy Transforming Recliner into Bed
- Bed Platform made-up of 3 Section Top covered with Cushion
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps

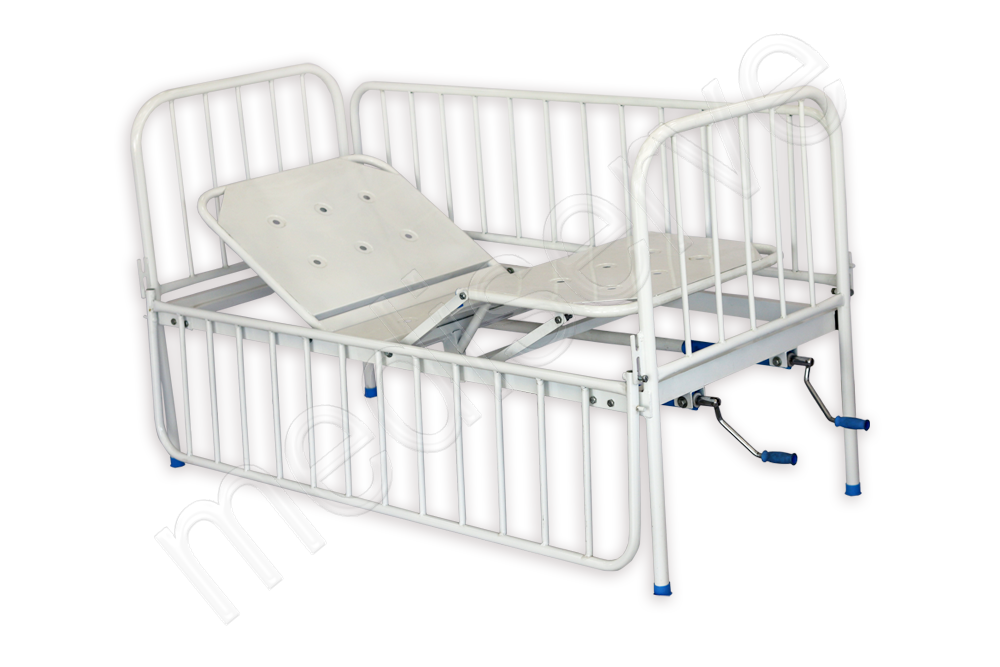

Specifications :
- Overall Dimension:- 69" L x 33" W x 22"H
- Functions :- Back Rest & Knee Rest ,
- All the function operated by CNC made Smooth Crank Screw handle Mechanism
- MS Head & MS Foot Bows
- Full Length Swing & Drop Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps

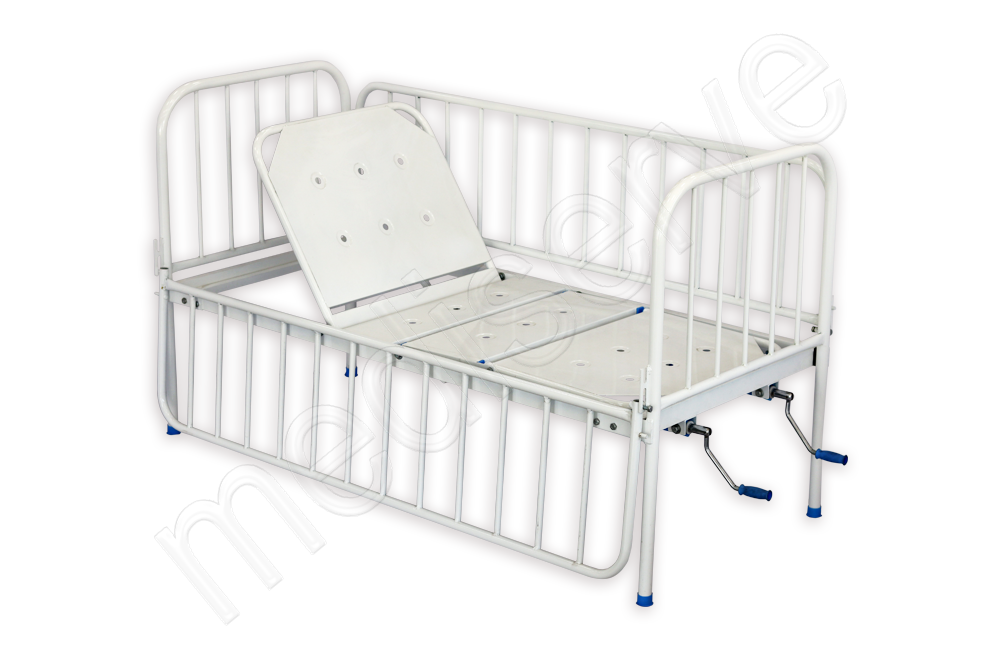

MS 521 - Semi Fowler Pediatric Bed
Specifications :
- Overall Dimension:- 69" L x 33" W x 22"H
- MS Head & MS Foot Bows
- Full Length Swing & Drop Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stumps
Specifications :
- Overall Dimension:- 69" L x 33" W x 22"H
- Functions :- Backrest
- All the function operated by CNC made Smooth Crank Screw handle Mechanism
- MS Head & MS Foot Bows
- Full Length Swing & Drop Down Side Railing
- Entire Body is made-up of Mild Steel CRCA Material

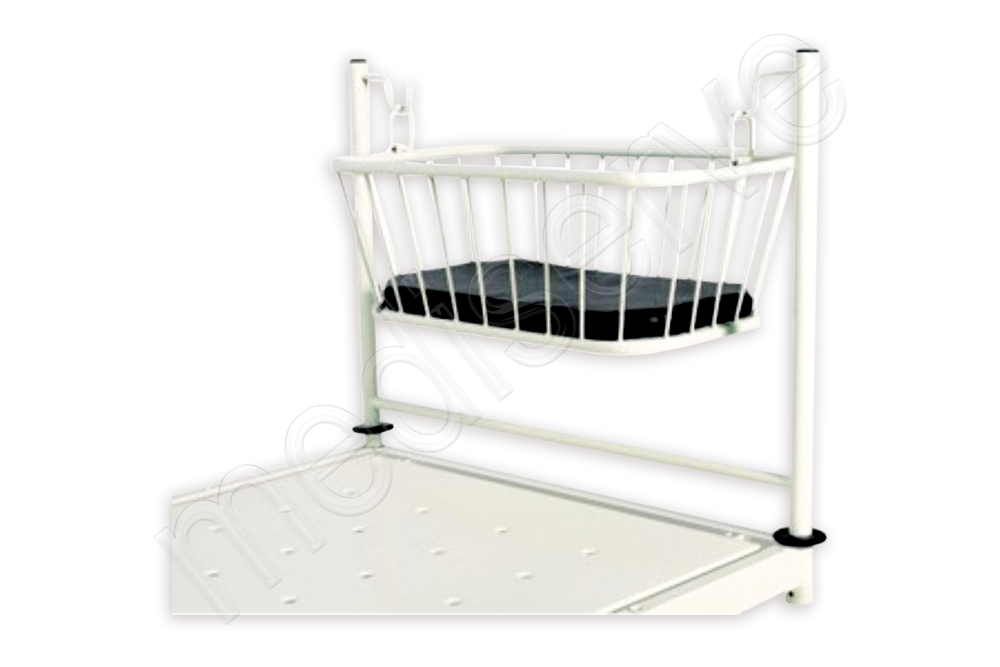

MS 523 - Cradle Stand Bed Attach
Specifications :
- Overall Dimension:- 33" L x 24" H
- Cradle Stand be will attached at the leg end of the bed
- Mattress thickness of 50mm
- Entire Body is made-up of Mild Steel CRCA Material
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated.

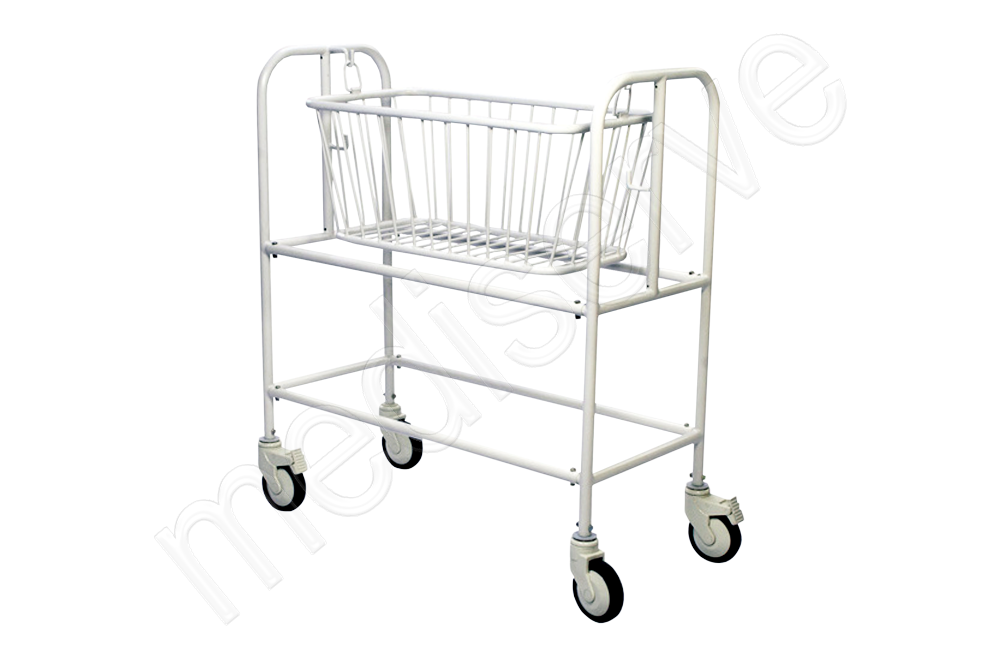

MS 524 - Cradle Stand Separate
Specifications :
- Mattress thickness of 50mm
- Entire Body is made-up of Mild Steel CRCA Material
- Leg end fitted with PVC Stump
- Finish:- Pre-treated (7 Tank Process) & Epoxy Powder Coated.
