Anaesthesia Machines And Solutions

Specifications :

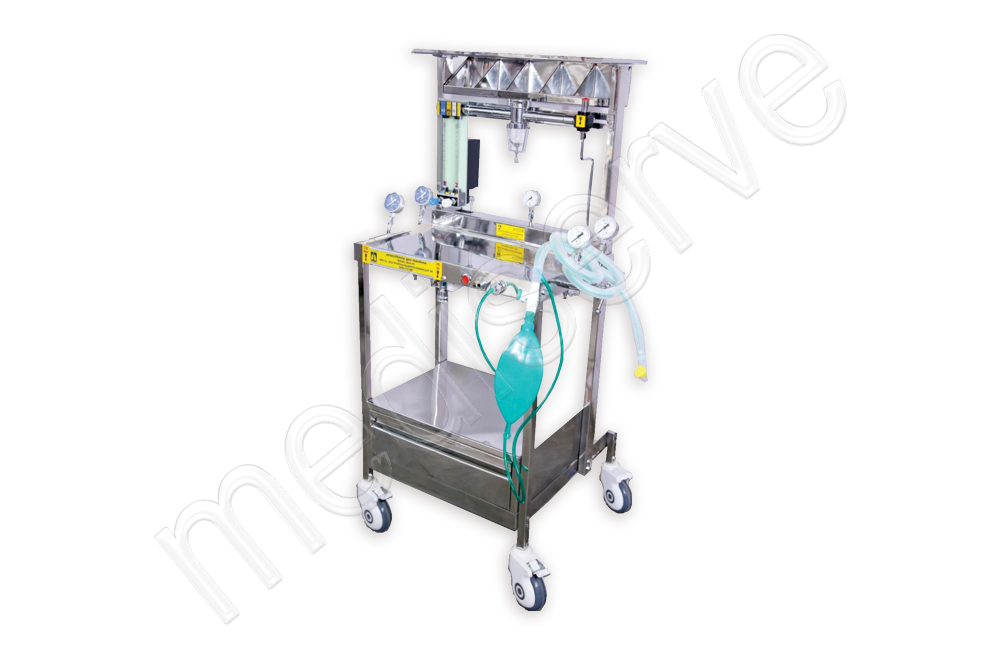

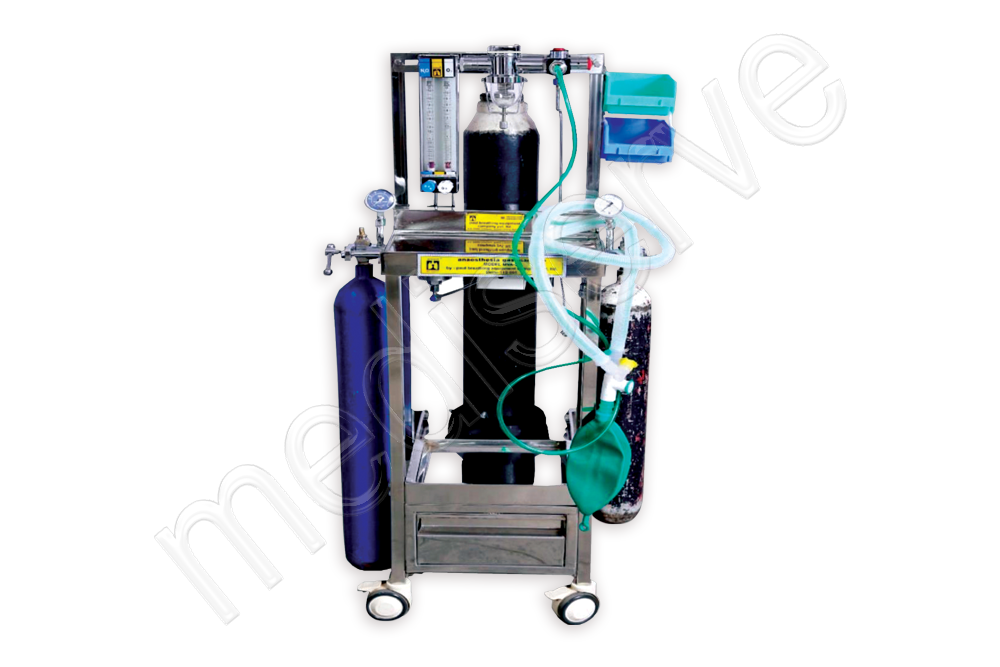

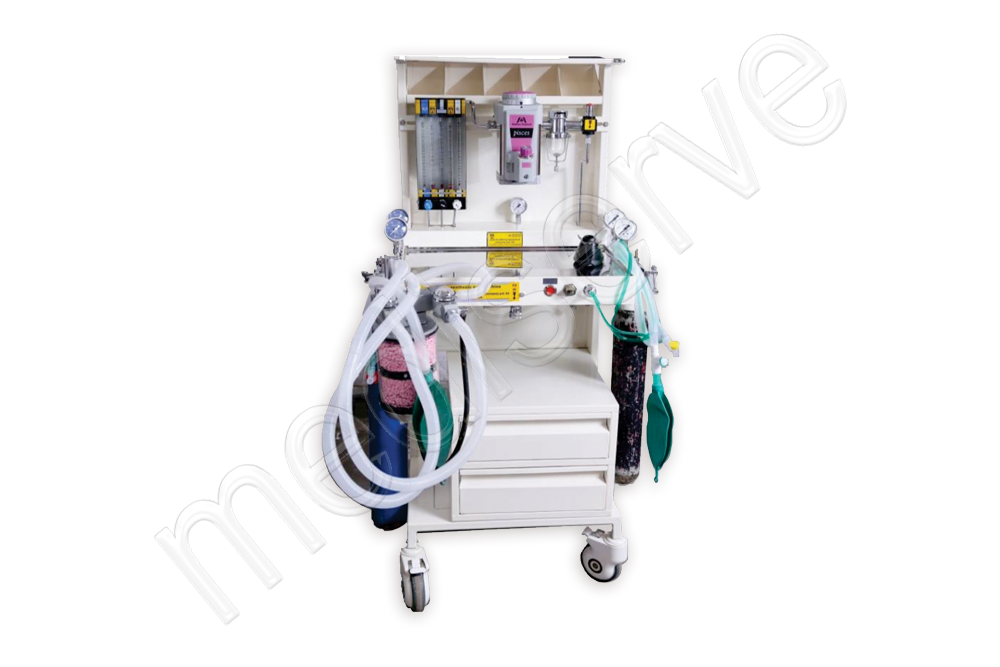

• Anaesthesia Machine mounted on twin drawer SS/PC trolley incorporated with Hypoxia Guard ORC and 5 tube rota meter (3 gases-O2, N2O & Air) forlow flow gas Anaesthesia, Selecta Tec mount for Tec vaporizer, N2O cut off system and O2 failure alarm as safety devices, along with other standard features.
• Tec vaporizer for Isoflurane/Sevoflurane
• Close Circuit Circle Absorber
• Anaestheisa Ventilator

Specifications :

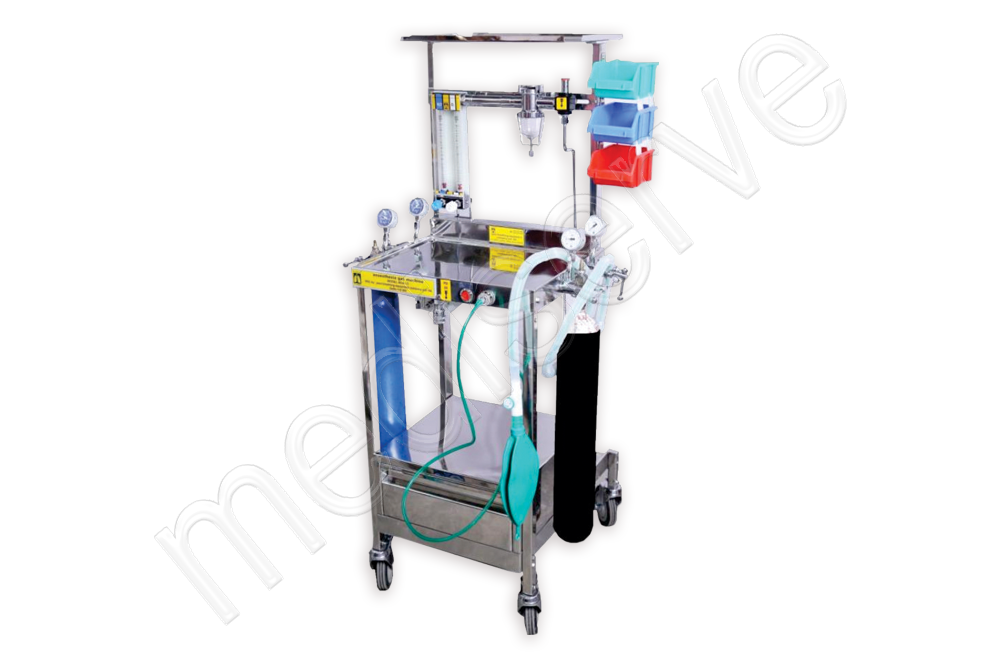

• wo Gas / Three Gas Rotameter, for oxygen, nitrous and / or O2, N2O & Air withfine adjustment control & colour coded knob and luminious back plate
• Oxygen flow meter calibrated from 100cc/min. to 10 litres/min. & nitrous oxide flowmeter from 200cc/min, to 12 litres/min. downstream receipt of oxygen
• One goldman type vaporizer for halothane supplied as standard.Provision to Park three vaporizers at a time
• Non - return cum blow off valve in circuit ensures pressure does not build-upbeyond 200cm. water column & minimises risk of back flow of gases
• Two pin indexed yokes with pre-set regulators for oxygen & two for nitrous oxide with indicator gauge
• Circuit pressure gauge for easy determination of oxygen pres-sure in the line
• ntergrated safety features "nitro lock": nitrous oxide supply interlocked with oxygen, making it impossible for nitrous to be administered to patient in the absence of oxygen supply in yokes.In addition rotameter ensures protection (hypoxic guard ORC) singular flow of N2O without minimum 30% of oxygen
• OFWD:- An audible alaram is automatically activated if pressure of oxygen falls below 30 PSI. Simultaneously, it activates a pneumatic circuit to lockthe flow of nitrous oxide
• Over head shelf for monitor at eye level
• Emergency drug tray incorporated at convenient position
• Instrument tray made of stainless steel
• 60 PSI out let for driving Ventilator
• Change over unit provided at a convenient place, which allowes the equipment to be used in both open & close mode & has an integrated oxygen flush and CGO

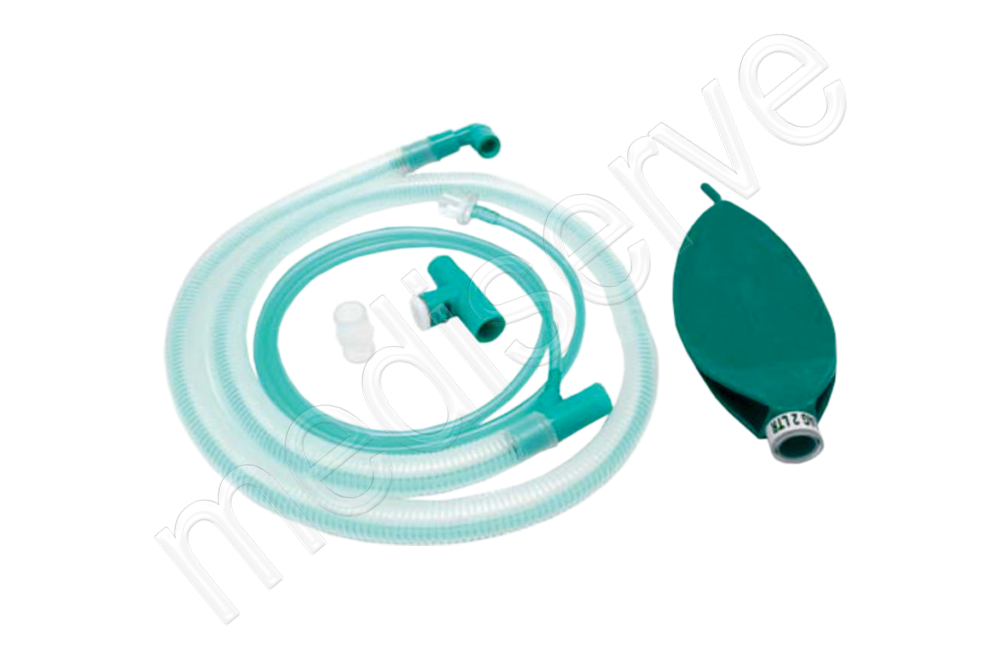

• One open circuit (Bain's circuit)
• Space for two additional medium size cylinder atthe rear
• Table structure constructed from sturdy square stainless steel/m.s. and electrostatically powder coated
• Circle Absorber (optional) can be easily mounted on the left side of table frame
• The equipment is fitted with capacious drawer on four large diameter antistatic castor double ball bearing wheels for easy mobility and brakes on front wheels

Two gas rotameter, for oxygen & nitrous oxide, with fine adjustment control & colour coded knob and luminious back plate. Oxygen flow meter calibrated form 100cc/min. to 10 litres/min. & nitrous oxide flowmeter from 200cc/min. to 12 litres/min. downstream receipt of oxygen

Specifications :

• One Goldman type vaporizer for halothane supplied as standard. Provision to mount two vaporizers at a time
• Non - return cum blow off valve in circuit ensurespressure does not build-up beyond 200cm. water column & minimises risk of back flow of gases
• Two pin indexed yokes with pre-set regulators for oxygen & two for nitrous oxide with indicator gauge
• "Auto N2O cut" - Nitrous oxide supply interlockedwith oxygen, making it impossible for nitrous to be administered to patient in the absence of oxygen supply in yokes
• Over head shelf for monitor at eye level Emergency drug tray (bins) fitted at convenientplace Instrument tray made of stainless steel
• 60 PSI outlet for driving Ventilator
• Emergency oxygen unit with fresh gas out let atconvenient position One open circuit (Bain's circuit)
• Space for two additional medium size cylinder at therear
• Table structure constructed from sturdy square stainless steel/m.s. and electrostatically powdercoated
• Circle Absorber (optional) can be easily mounted on the left side of table frame
• The equipment is fitted with spacious drawer on four large diameter, antistatic castor double ball bearing wheels for easy mobility and brakes on front wheels

Two gas rotameter, for oxygen & nitrous oxide,with fine adjustment control & colour coded knob and luminious back plate. Oxygen flow meter calibrated from 100cc/min. to 10 litres/min. & nitrous oxide flowmeter from 200cc/min. to

Specifications :

• 12 litres/min. downstream receipt of oxygen
• One Goldman type Vaprorizer for Halothanesupplied as standard
• Non return cum emergency oxygen unit with blow off valve in circuit ensures pressure does not build-up beyond 200cm. water column & minimises risk of back flow of gases
• One pin indexed yoke with pre-set regulator foroxygen & one for nitrous oxide with indicator gauge for easy identification
• Self sealing valve attachment for additional oxygen source from bulk cylinder/central pipe line/medium size cylinder
• "Auto N2O cut" - nitrous oxide supply interlockedwith oxygen, making it impossible for nitrous
• to be administered to patient in the absence ofoxygen supply in yoke
• Emergency drug tray (bins) fitted at convenientposition
• Instrument tray made of stainless steelOne open circuit (Bain's circuit)
• Space for one additional medium size cylinder
• at the rear. (total three cylinders can be attachedat a time)
• Table structure constructed from sturdy square stainless steel/m.s. and electrostatically powdercoated
• The Equipment is fitted with spacious draweron four castor wheels for easy mobility
